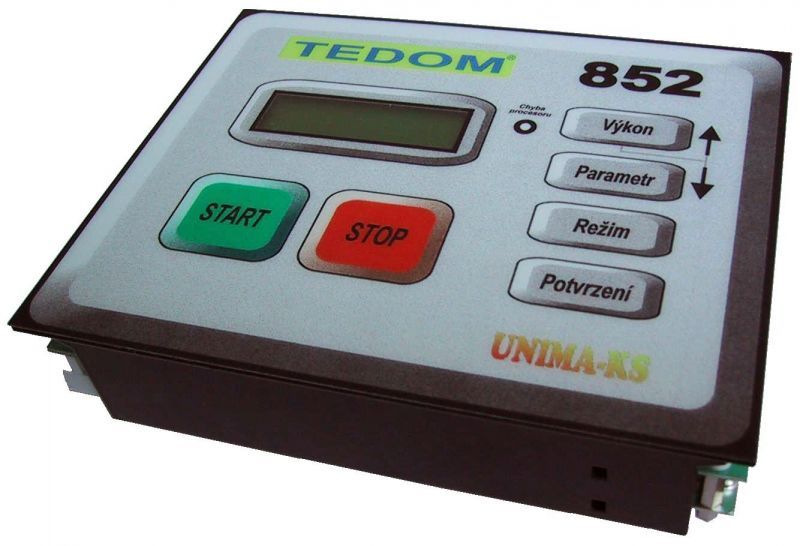

Control system 852+

Control system determined for small co – generating units with asynchronous generator (in cooperation with NSU  it is possible to use it for synchronous machines control).

Basic features:

• number of inputs 8 with line control and programmable polarity
• number of outputs 16 including stepping motor control
• measurement of temperature 3x (PT100, thermocouple type K and digital sensor)
• measurement of power 4-kvadrant (simple - phase)
• measurement of rotation
• measurement of signal 0-20 mA (object consumption)
• supply 10-33 VDC or 10-24 VAC
• communication RS-232U (possibility of parallel connection of several control systems)
• real time circuit, history backup, modem support
• regulation of mixture on lambda sensor unit basis
• under lighted LCD display, foil keyboard
