Binary inputs and outputs expansion EBinIO8

The EBinIO8 module is used to expand the number of binary inputs and outputs of control systems (or other UNIMA-KS devices of the AP version). It contains 8 inputs / outputs (each signal can be independently configured for input or output). It is connected to the control system via the RS-485 bus. The module is available in two versions (according to IP). In the IP20 version it is intended for mounting in the DIN rail of the switchboard, in the IP67 version for mounting outside the switchboard.

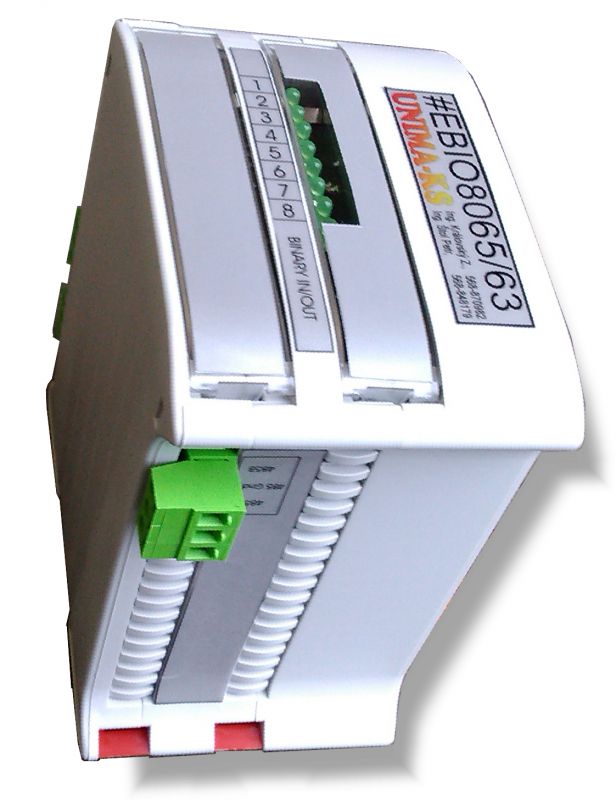

IP20

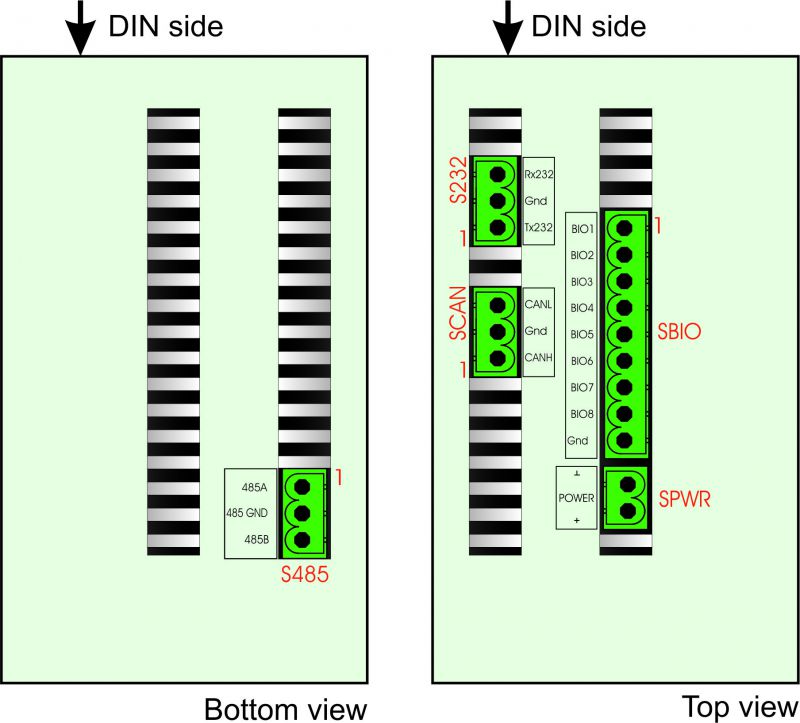

Design of the module for mounting in a DIN rail

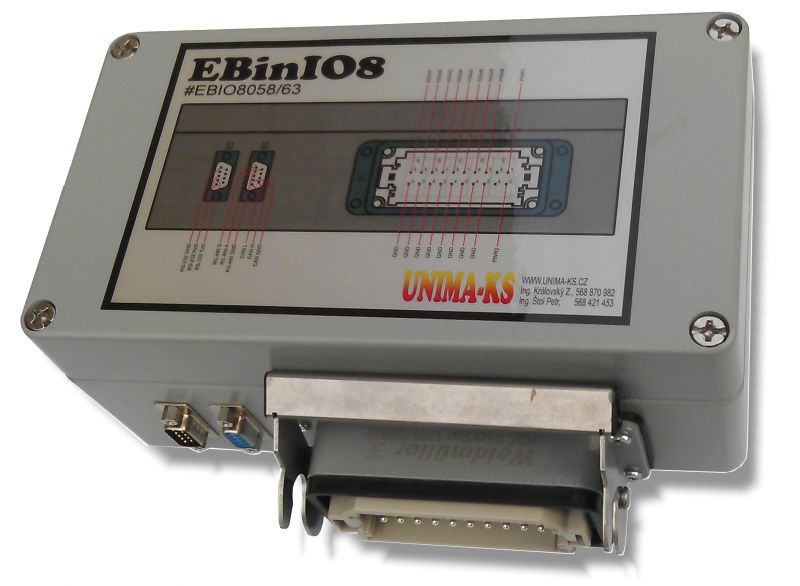

IP67

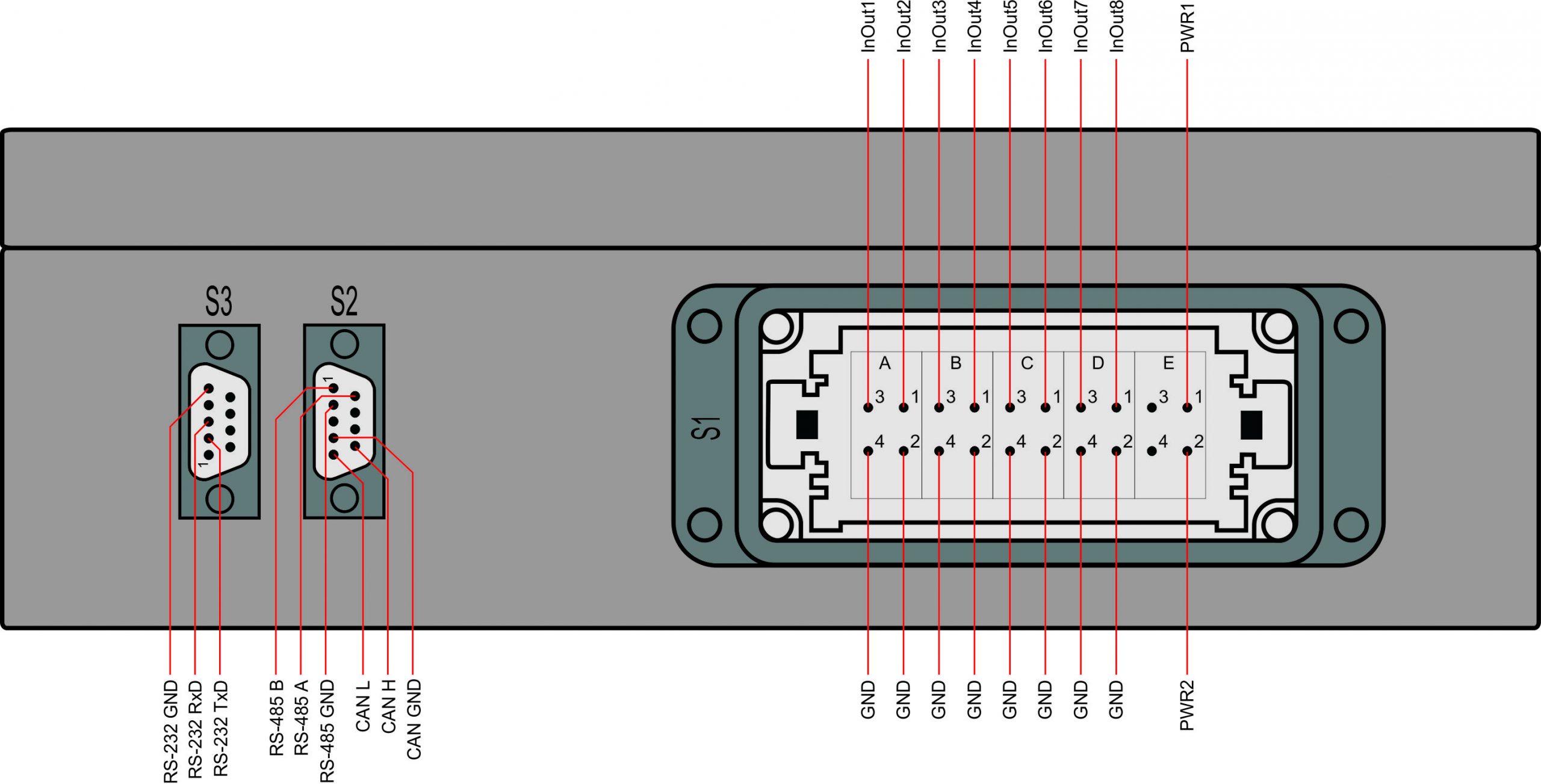

Design of the module for mounting outside the switchboard
