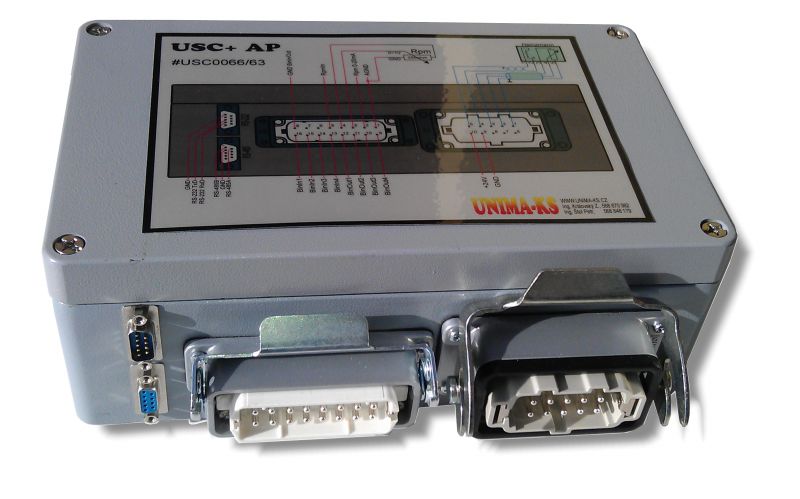

Regulator of rotation USC AP

Digital PID speed governor. Supports dual fuel system, various sets of PID parameters, Heinzmann actuator. A wide range of parameters for adjusting the controller to the installation, the PLC for the user algorithm. Data management from the UniGEN AP control system or analog and binary signals. A more detailed description of the speed controller can be found here.
The previous version of the controller was labeled SpeedCON.

Basic features:

• Measurement and regulation of engine speed
• 4x binary input
• 4x binary output
• configurable  mapping  of inputs and outputs
• PLC  functions  for extended user algorithm
• Wide range of supplying voltage 10÷33V DC
• Communication RS-232 (diagnostics and adjustment by service program  Manager AP ), RS-485 (control of regulator over data line, cooperation with control system UniGEN and ignition UIS)
• Analog input / output for control of correcting unit Heinzmann
• Analog input 0÷20mA (0÷1V, 0÷256ohm) for control of required rotation (possibility to control also over data line by RS-485 for example by control system UniGEN)
