Analog outputs expansion EAnlOut8x10V

The EAnlOut8x10V module is used to expand the number of analog outputs of control systems (or other UNIMA-KS devices of the AP version). It contains 8 outputs -10 ÷ 10V. It is connected to the control system via the RS-485 bus. The module is available in two versions (according to IP). In the IP20 version it is intended for mounting in the DIN rail of the switchboard, in the IP67 version for mounting outside the switchboard.

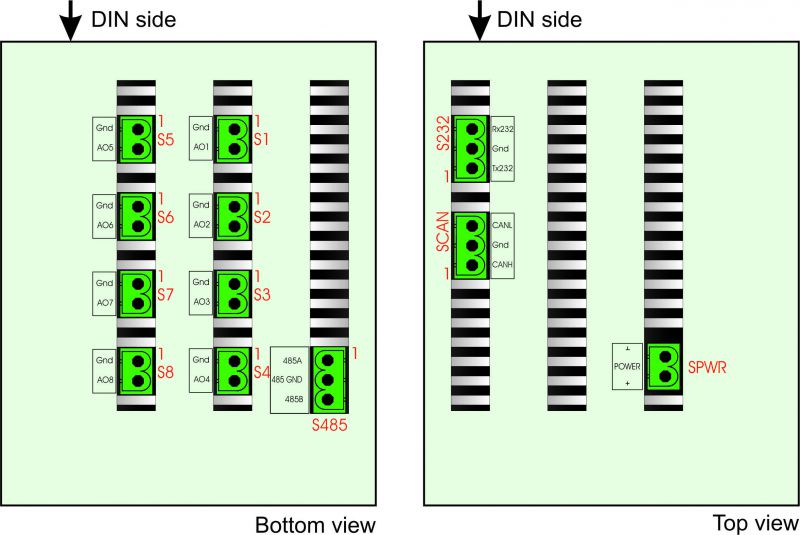

Design of the module for mounting in a DIN rail

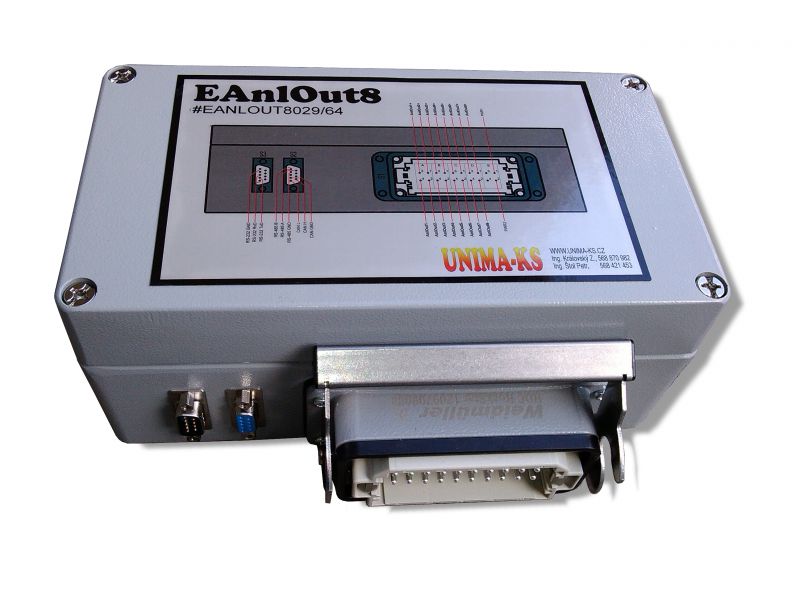

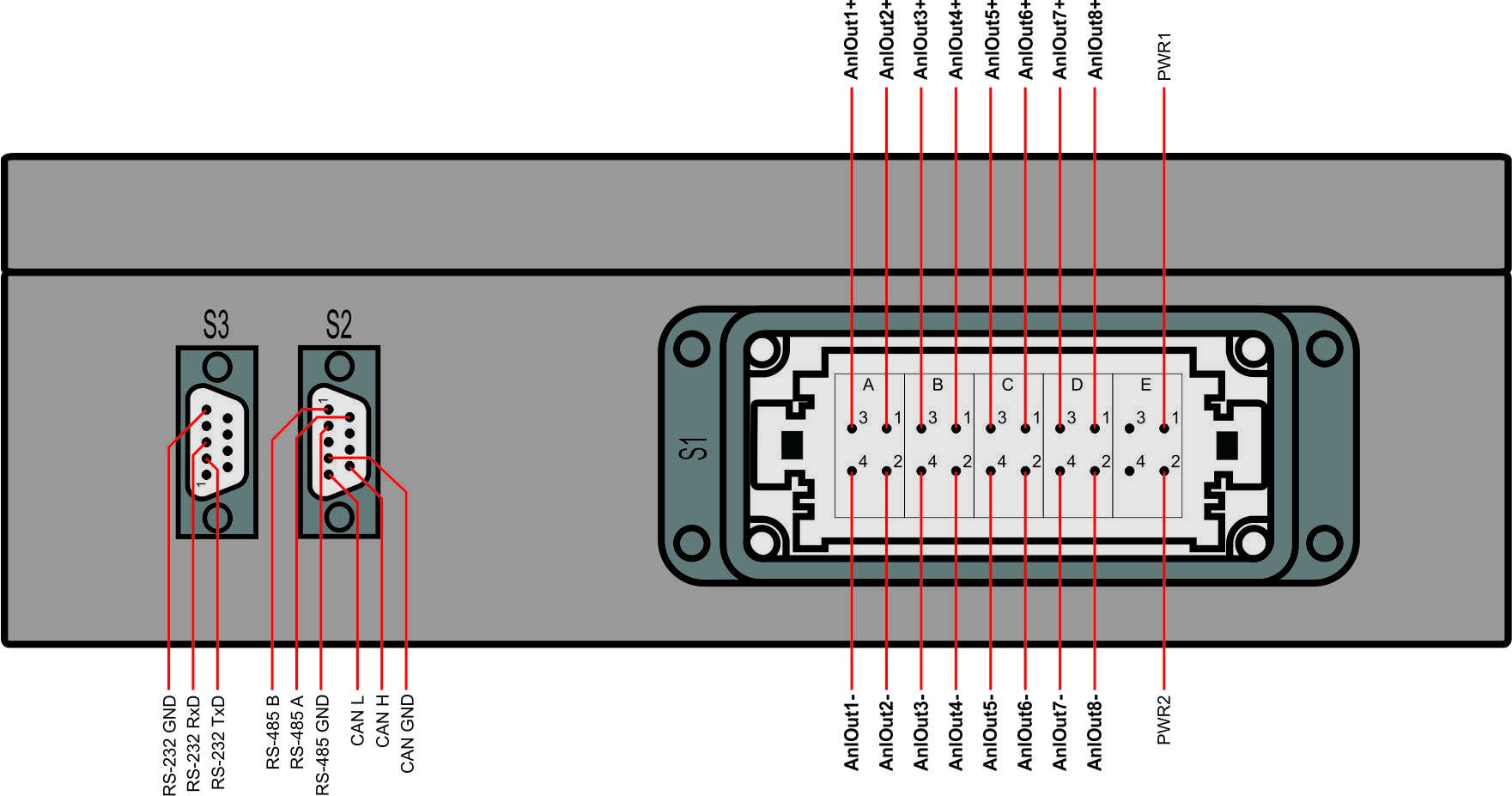

Design of the module for mounting outside the switchboard
