Analog inputs expansion EAnlIn8

The AnlIn8 module is used to expand the number of analog inputs of control systems (or other UNIMA-KS devices of the AP version). It contains 8 inputs (each signal can be independently configured for 50mV, 1V, 10V, 20mA, 100ogm, Pt100 and Pt1000). It is connected to the control system via the RS-485 bus. The module is available in two versions (according to IP). In the IP20 version it is intended for mounting in the DIN rail of the switchboard, in the IP67 version for mounting outside the switchboard.

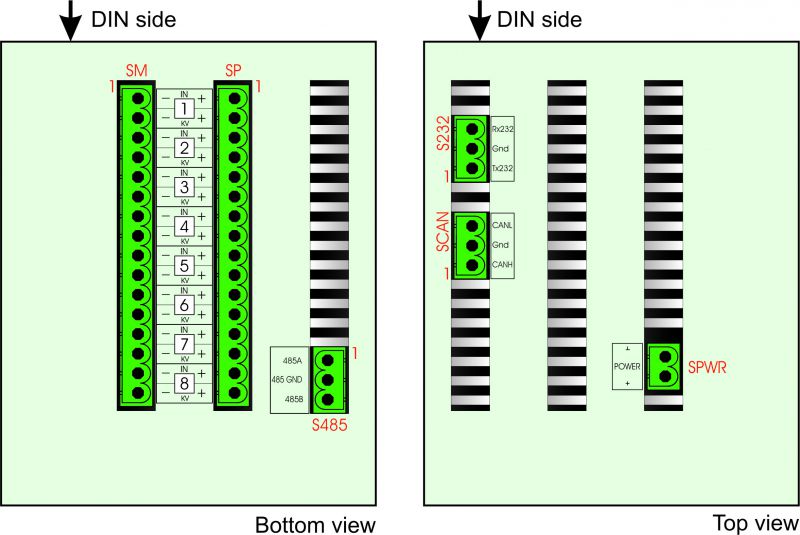

IP20

Design of the module for mounting in a DIN rail

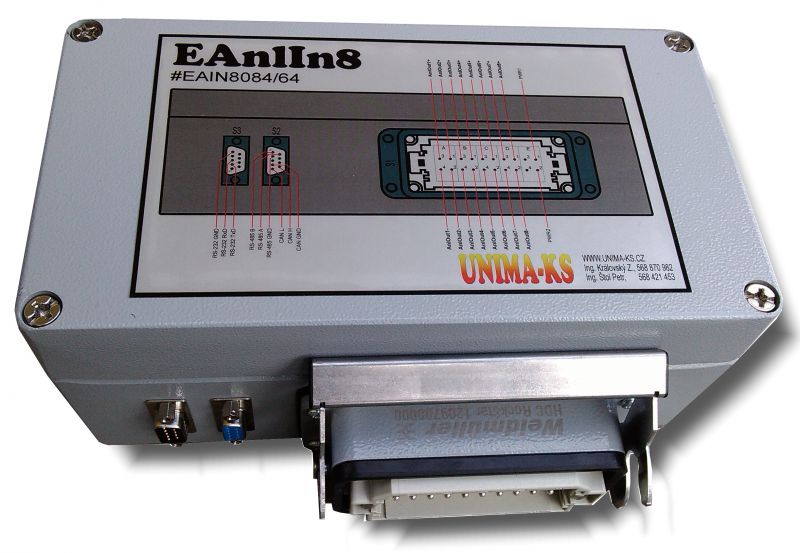

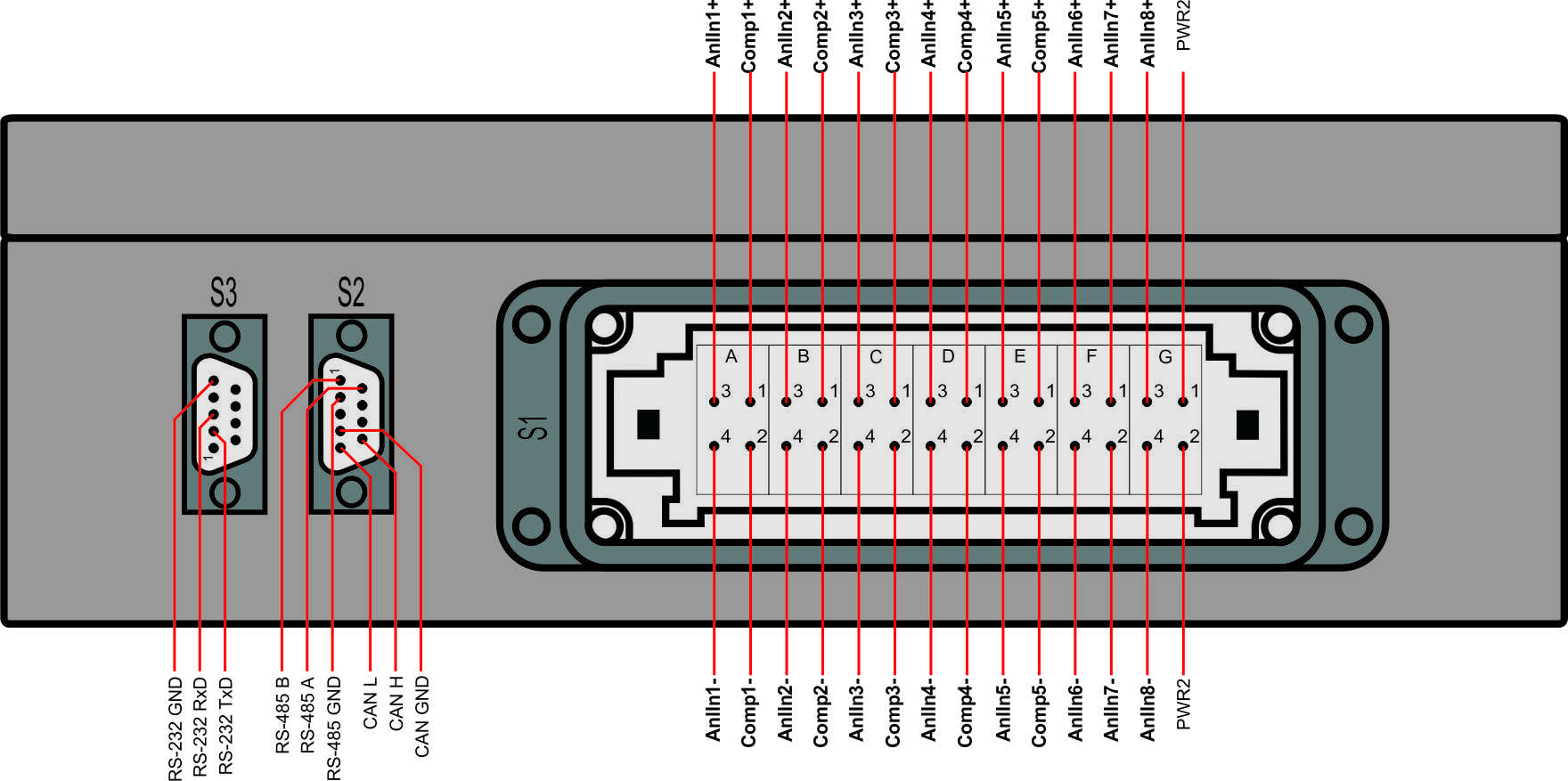

IP67

Design of the module for mounting outside the switchboard
