Pocket digital wobbler

Delivery content:

- Respective equipment
- Supply and charging adapter =9V, 300mA
- 4pcs of alkaline accumulators LR6/AA 1,5V 1500mAh (in equipment)
- Floppy disc 1.44M containing SW for PC (Win95/98/NT)

Basic features:

LCD display 128x64 with under light
Equipment dimension 230x130x50mm
Equipment weight 620g
Input resistance 50Ω
Output sinusoidal voltage (200mV/50Ω)
Spectral purity more than 50dB
Frequency range 5Hz-32MHz (according to type up to 50MHz)
Generator step 0,03Hz
Wobbler is possible to use as generator
Amplitude and frequency is possible to measure by cursor
Dynamics 20, 40, 80dB for screen (5, 10, 20dB for section)
Time of battery operation of equipment is 5hrs. without under light of display
Time of charging 8 hrs. (equipment is automatically charged during operation with adapter attached)

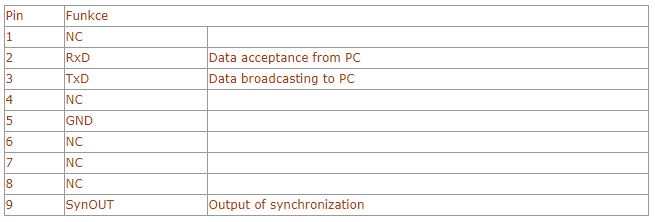

RS-232U, serial communication interface 232 extended by possibility of sharing transmitting conductor (consequently possibility of parallel connection up to four equipments to PC).

Equipment operation:

Equipment is switched on and off by „POWER“ button
Equipment function is selected by „FUNC“, „UP“, „DOWN“, „LEFT“, „RIGHT“ and „SEL“ buttons, see Map of equipment operation as attached
