Electronic ignition of new generation for 4÷8 cylinder motors, intelligent control of pre – ignition and energy. Detailed description of ignition can be found here.

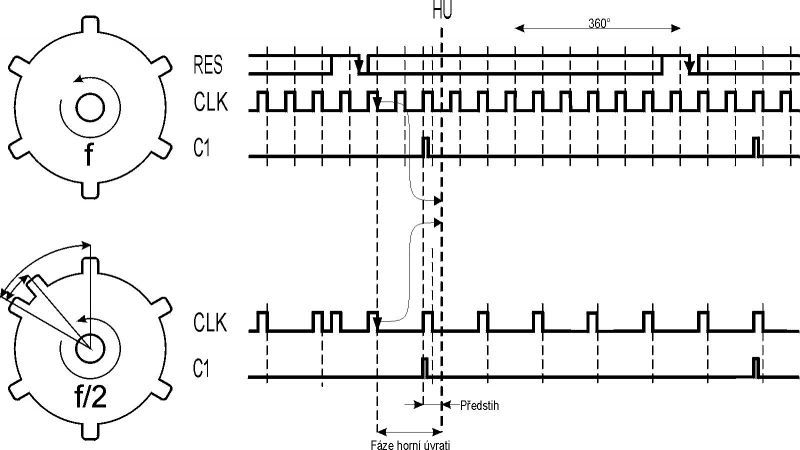

Ignition supports both double – sensor reading (gear ring turning on rotation of motor + "reset" thus reading of half - turn) and single – sensor reading (gear ring with "additional teeth", which is rotating on half - turn). From "reset" or additional teeth is winded the first cylinder burning, see picture:

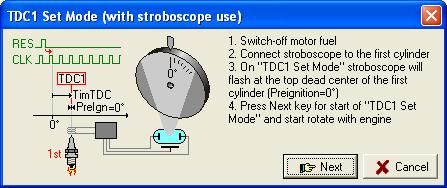

Adjustment of pre – ignition by service program Manager is very easy. After activating mode of adjustment of pre - ignition TMCI2 burns with pre ignition 0° (in top dead centre).

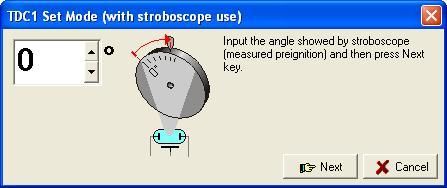

After connection of stroboscope it is sufficient to measure angle on first cylinder in mode of adjustment of pre - ignition (without fuel mixture, only for starter) and this value enter in service program.

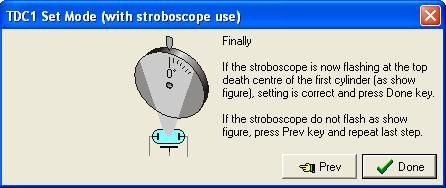

Than pre – ignition is adjusted (stroboscope indicates angle 0°). After mode of adjustment of pre – ignition will be TMCI2 burning with parameter defined pre - ignition.
