Hybrid module expansion EHybIO9

The EHybIO9 module is used to expand the number of binary and analog inputs and outputs of control systems (or other UNIMA-KS devices of the AP version). It contains 4 binary inputs / outputs (each signal can be independently configured for input or output), 4 analog inputs (2x20mA, 2xPt100) and 1 analog output 10V. It is connected to the control system via the RS-485 bus. The module is currently available in IP20 design (designed for mounting in the DIN rail of the switchboard).

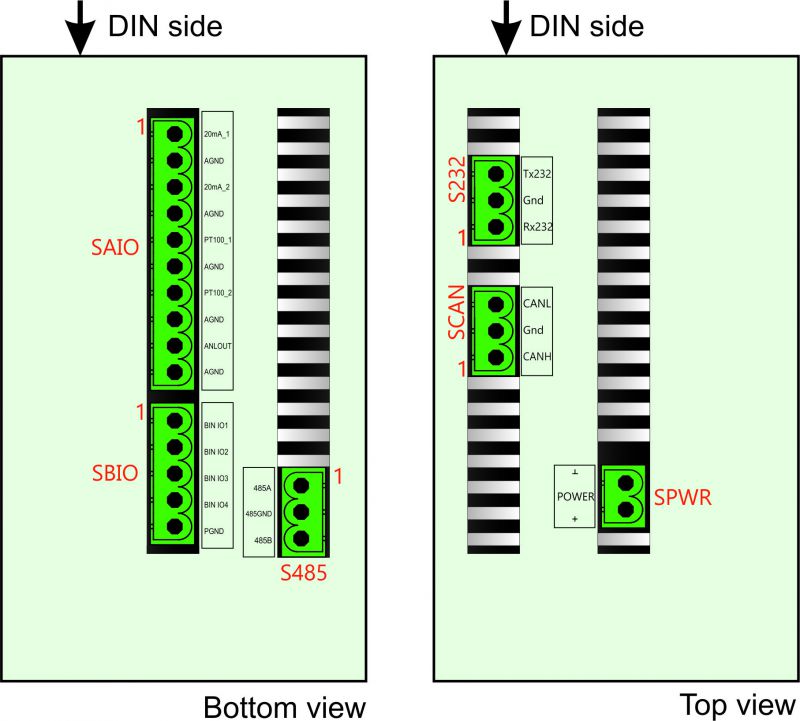

Design of the module for mounting in a DIN rail


Design of the module for mounting outside the switchboard

On request ...

On request ....
