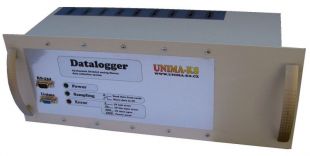

Data logger
Data logger serves for reading up to 64 both analog and binary values and theirs backup on memory medium. Equipment corresponds with 8 slots, which are possible to occupy by different types of cards according to required configuration.
Basic features:
- Supply 230V AC

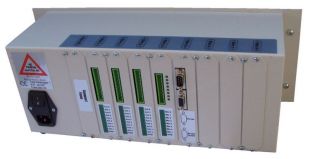

- 8 slots for different types, usually with 8 input cards
- RTC (real time circuit)
- Slot for memory card CF (Compact Flash) with maximum size 2GB (FAT12, FAT16)
- Backup of measured data into text file, that can be imported for example to Excel
- Communication interface RS-232 (communication with PC) and RS-485 (CAN) for data logging by data line
- Adjustable interval of sampling
- Activation of "composed" record with pretriger during exceeding of comparing limit of any value
- Indication of state and operation of Data logger by LED on front panel of equipment

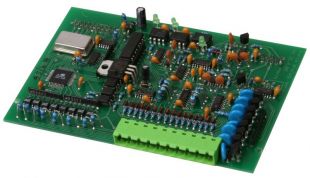

Analog card
8x independent configurable input(Pt100, 20mA, 50mA, 1V, 10V, potentiometer, measurement of frequency)
Binary card
8x binary input with mutual groundIndication of state by LED

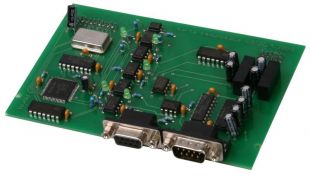

Communication card
Communication interface RS-485 and CANServes for reading data from other equipmentsSupports for example reading data by ModBUS from gauge CVM (V,A,W,VA-meter)
