Pocket digital oscilloscope, generator, multi - meter
Delivery content:
- Respective equipment
- Supply and charging adapter =9V, 300mA
- 4pcs of alkaline accumulators LR6/AA 1,5V 1500mAh (in equipment)
- Floppy disc 1.44M containing SW for PC (Win95/98/NT)
- Not valid for model Simple (without accumulators and adapter)
Basic features:
- LCD display 128x64 with under light
- Equipment dimension 230x130x50mm
- equipment weight 620g
- Input resistance 1Mohm / 30pF
- Converter 8 bits,10 bits
- Accuracy 2% from range
- input ranges 10mV–300V /section (4 sections / picture)
- Time ranges 1us-5s /section (8 sections / picture.), max. 5MS
- Time of battery operation of equipment is 6 hrs. without under light of display
- Time of charging 8 hrs. (equipment is automatically charged during operation with adapter attached)

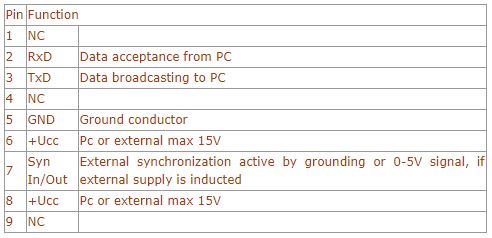

- RS-232U, serial communication interface 232 extended by possibility of sharing transmitting conductor (consequently possibility of parallel connection up to four equipments to PC)
Functions of equipment:
- One – channel oscilloscope (bandwidth 1MHz) with possibility to admeasure signal by axes
- Generator of signal (sinus 0.1-2V / 5Hz-50kHz), quick frequency switching between preset values
- Voltmeter (automatic range selection 60mV-600V / DC, 42mV-420 V/ AC)
- Ampere - meter (200 mA/20A DC ,14.2 mA/14.2A AC )
- Ohmmeter (1 Ohm-4M Ohm automatic selection)
- Capacity measurement (2nF-400 uF automatic selection)
- Inductivity measurement (30mH-300H manual selection)
- Diode test + acoustic signalization of short circuit
- Scaler (5Hz-500kHz automatic with manual range selection 0.2V-2V)
Equipment operation:
- Equipment is switched on and off by „POWER“ button
- Equipment function is selected by „FUNC“, „UP“, „DOWN“, „LEFT“, „RIGHT“ and „SEL“ buttons
Note: For connection of more equipment to PC shall every of equipment have adjusted different communication address!According to interface is galvanic - separated and supplied from PC, for connection of more equipment is necessary to use special cable with adapter, which can be ordered.
In case of your interest it is possible to link equipment start screen with your delivered bitmap (logo, picture) in black and white format 64x64 bits.
