Display unit UCD10 AP

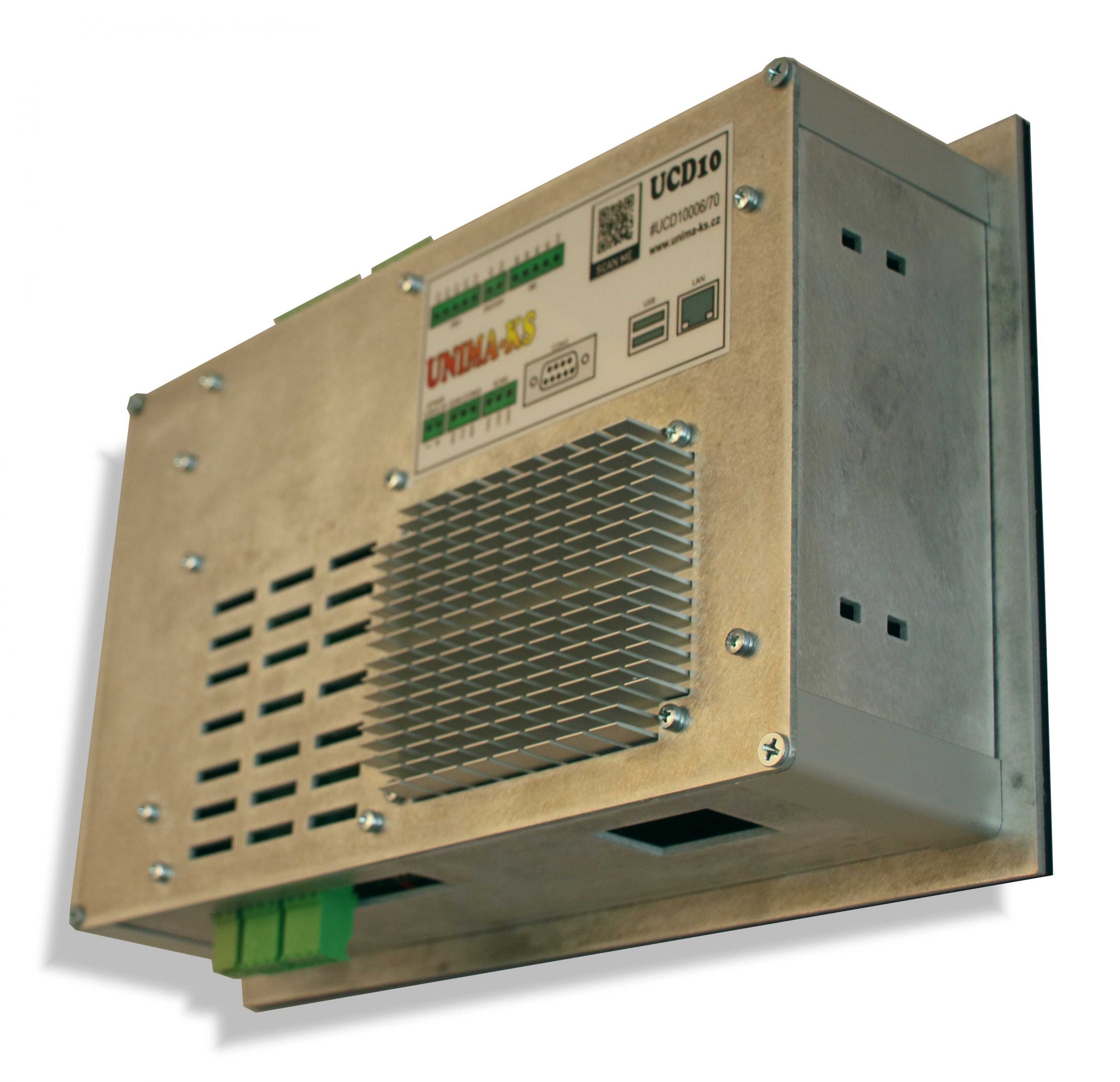

The UCD10 display unit is used for visualization, configuration and control of all UNIMA-KS devices. The unit has a 10 "color touch screen with a resolution of 1280x800 pixels. The display unit can be connected via RS485 UnimaBUS. Data from third party devices can be read and displayed via RS232, CAN or USB. The display unit can be used not only as an external display of control systems DIN rails (without display) but also, for example, for visualization of data from measuring modules.
The TerminalAP application is used for visualization and control of cogeneration units and other motor-generator sets, which is adapted for comfortable control via the touch screen.

Basic features

  • Wide range power supply 10 ÷ 33DC or 8 ÷ 24AC
  • 10 "color touch screen with a resolution of 1280x800 pixels
  • RS232 (COM1)
  • RS485 (COM2) UnimaBUS, connection of UNIMA-KS components
  • CAN
  • 2x USB
  • 1x LAN
  • 4x binary input
  • 4x binary output (outputs 1-3 can be configured as PWM for analog alarm control or 0-10V voltage generation)
  • 1x 10V reference voltage output
  • Internal PLC (mapping and functions)
